Series B High Speed Handpiece
- Product Introduction
- Product Features
- Configuration
-

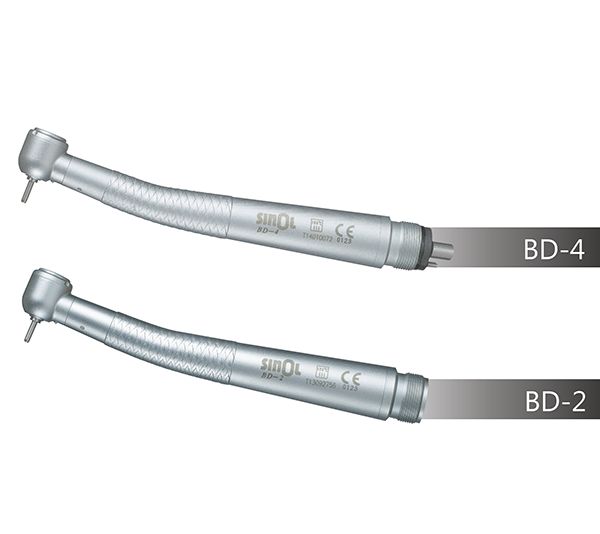

Technical parameters of BD-2 are as below:
Head sizes: Torque type
Maximum diameter（mm）: Φ12.2
Driving air pressure(MPa): 0.21±0.01
Free-running speed ( rpm): ＞300000
Water pressure: 0.2~0.4
Connection: 2-hole
Light function: None
Cooling form: Single spray
Structural style：Direct connection
Technical parameters of BD-4 are as below:
Head sizes: Torque type
Maximum diameter（mm）: Φ12.2
Driving air pressure(MPa): 0.26±0.01
Free-running speed ( rpm): ＞300000
Water pressure: 0.2~0.4
Connection: 4-hole
Light function: None
Cooling form: Single spray
Structural style：Direct connection

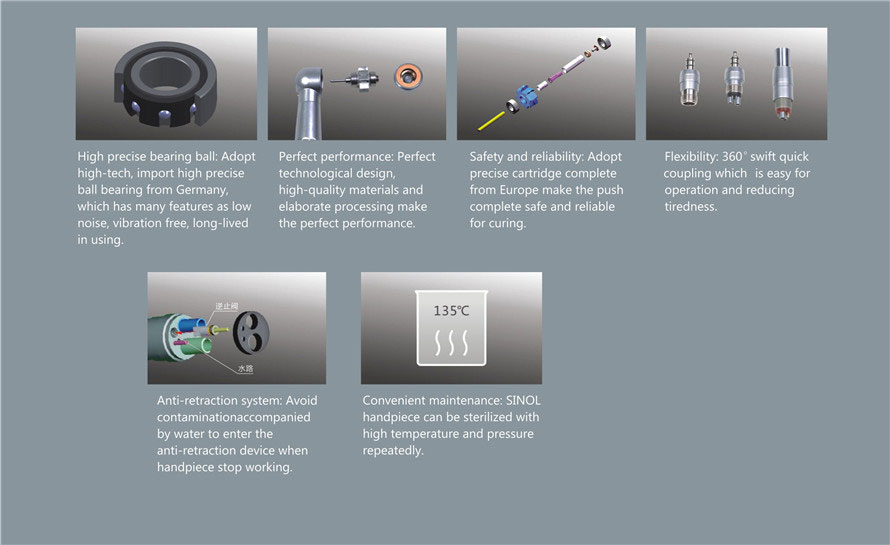

Ceramic bearing
Push button
Signal spray
Stainless steal
